Spectrum AR12120 12ch DSMX XPlus PowerSafe Receiver SPMAR12120 compatible JR Spek RC remote controller
AR12120 Spectrum 12ch DSMX XPlus PowerSafe Receiver SPMAR12120
compatible X Plus JR Spek RC remote controller
Key Features:
12-Channel DS-MX PowerSafe Receiver
True dual battery redundancy - each battery is isolated and if one fails/shorts the other takes over
Utilizes up to four remote receivers for the ultimate RF link in even the most demanding applications
Up to 35 amps continuous and 50 amps peak current handling capability
Fail-on soft switch in case the switch is damaged
Two types of failsafe - Smart Safe (throttle only) and preset failsafe (all servos)
QuickConnect - if a power interruption (brownout) occurs, the system reconnects in less than 1/2 second
Flight Log compatible
Heavy 16AWG dual battery leads with pre-wired E-flite® EC 3 connectors
Compatible with all Spektrum™ and JR® full range radio and module systems
2048 resolution
X Plus compatible
Product details

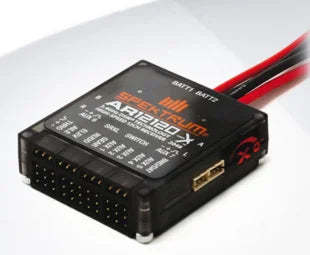

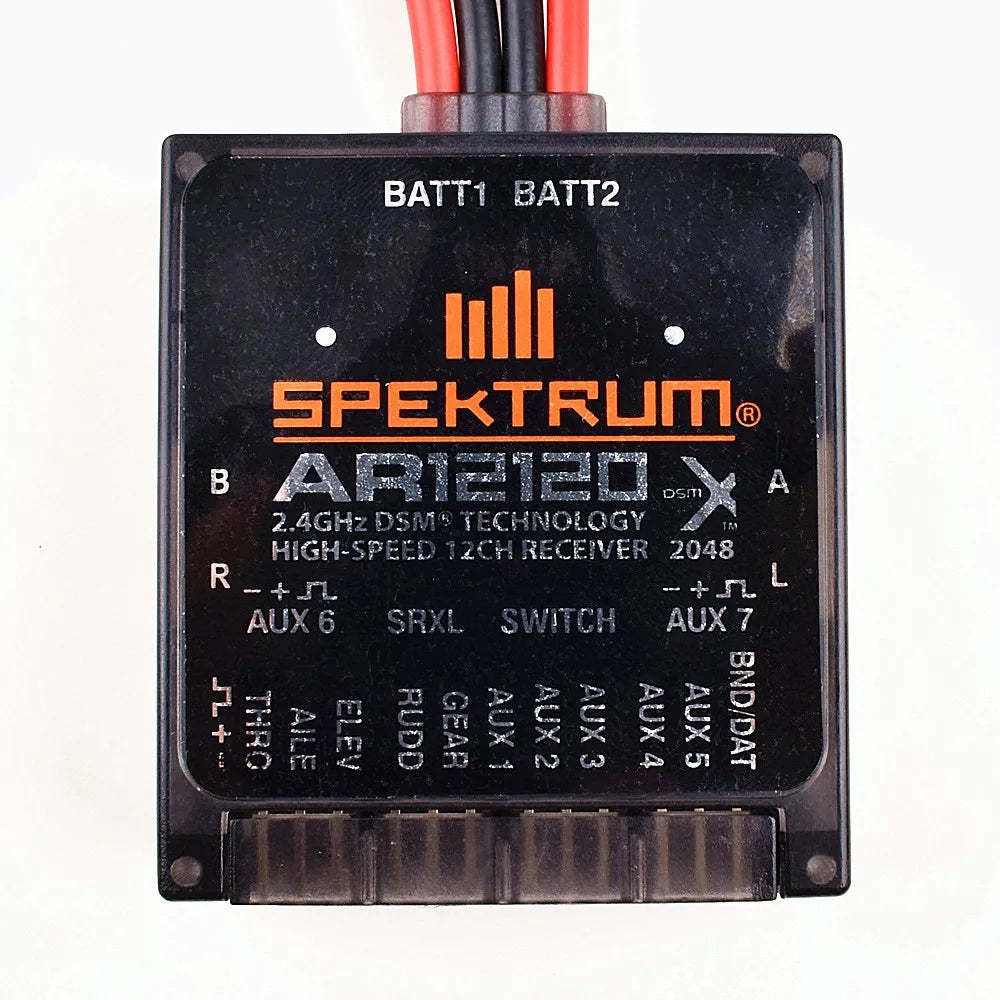

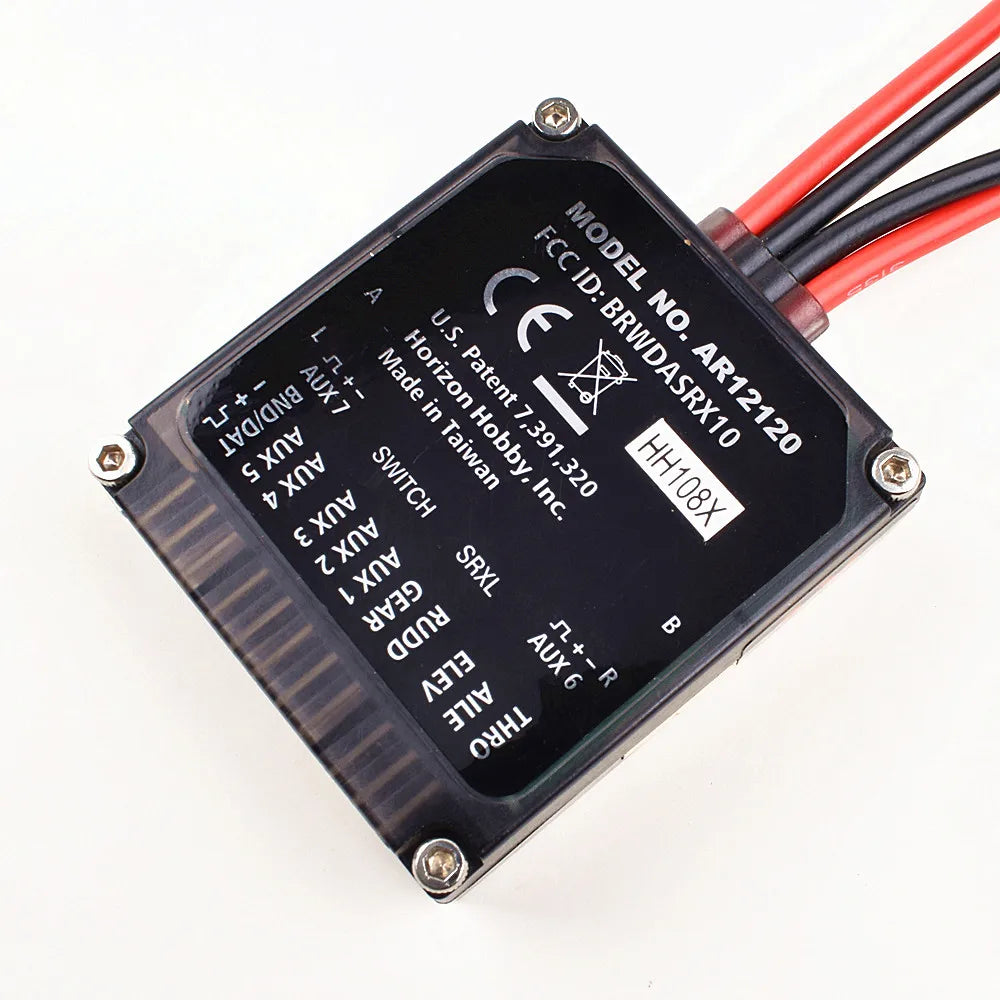

The AR12120 is a 12-channel DSMX PowerSafe receiver that gives you the option of adding extra channels simply by plugging a X-Plus8 channel expander into its SRXL port. This makes it ideal for scale modelers who like to push realism to the extreme with working accessories and lights, in addition to regular control functions - all in one small packages.
The PowerSafe battery system of the AR12120 incorporates redundant, dual-battery leads for use with battery systems up to 10 volts. Besides the ability to supply all the power your aircraft demands, the AR12120 also includes four small, remote receivers that let you take advantage of patented DualLink technology that ensure a comprehensive safety network on multiple levels.
The Specktrum AR12120 Power Safe offers the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), the AR12120 PowerSafe can provide peak current of up to 50 amps and offers true dual battery redundancy and a fail-on soft switch for the ultimate in reliability. By locating up to four remote receivers throughout the aircraft, the RF link can be optimized in even the most demanding aircraft installations that have significant conductive materials like carbon, stainless steel bypass tubes, tuned exhausts, etc. For models high in carbon fiber content the SPM9646 DSMX Carbon Fiber Remote Receiver is compatible with the AR12120.
Applications
• Giant-scale aircraft
• Jets with multiple high-current draw servos
• Scale aircraft with multiple high-current draw servos and accessories (e.g. lights, ESCs, air valves, etc.)
• Scale helicopters

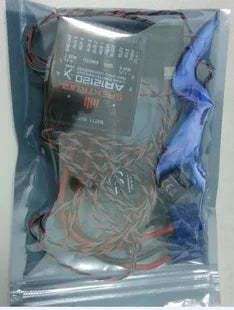

Package include

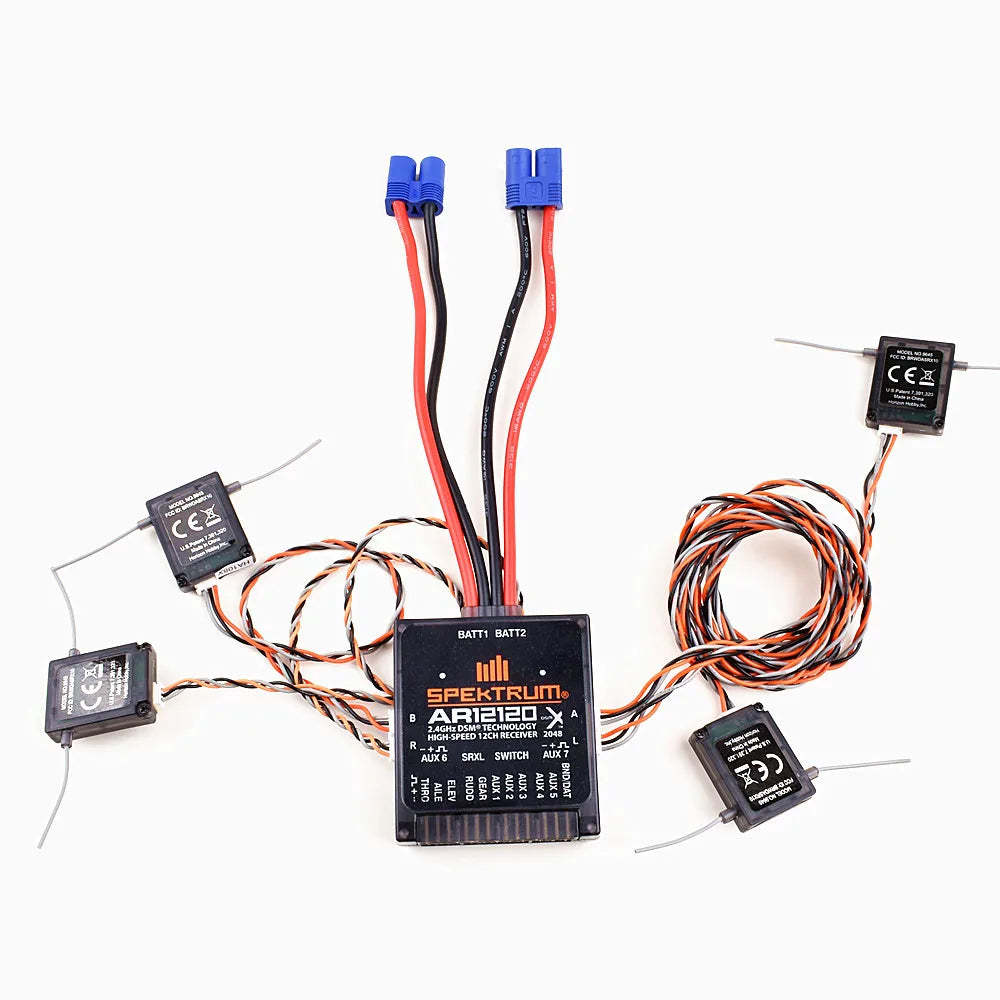

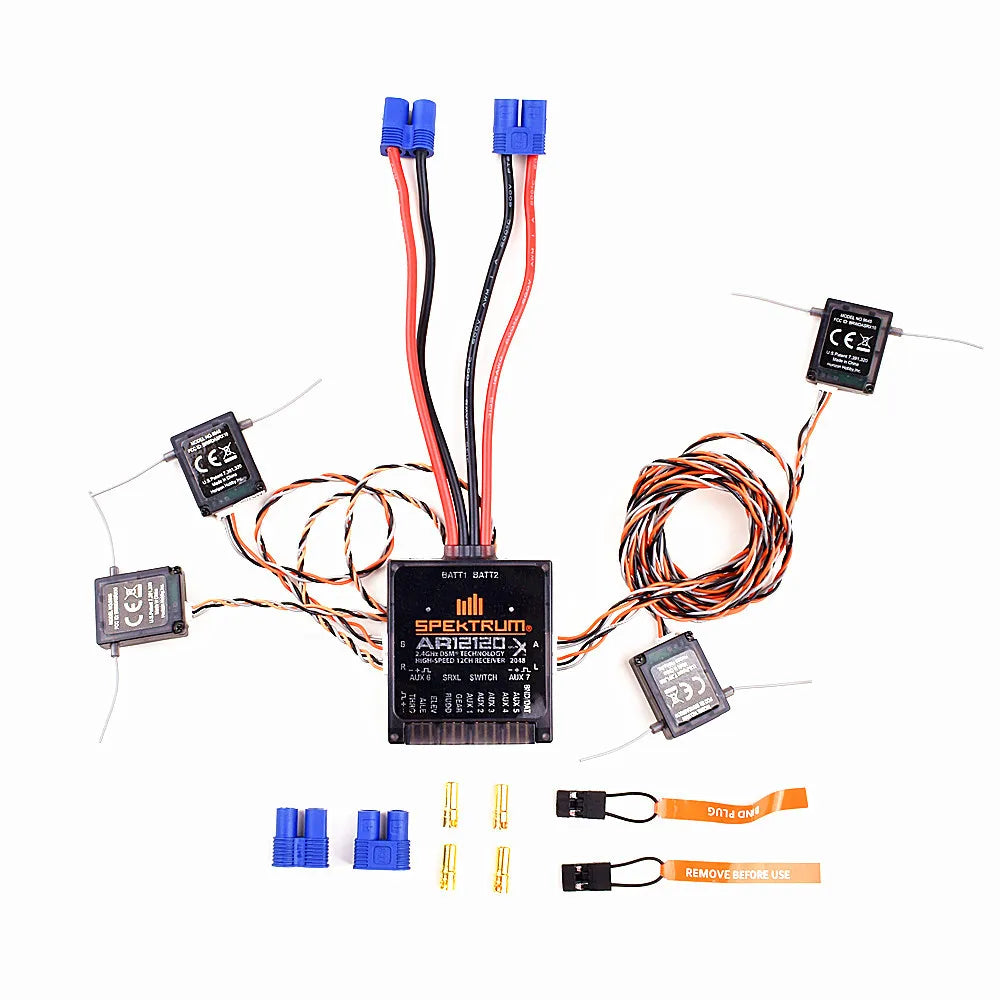

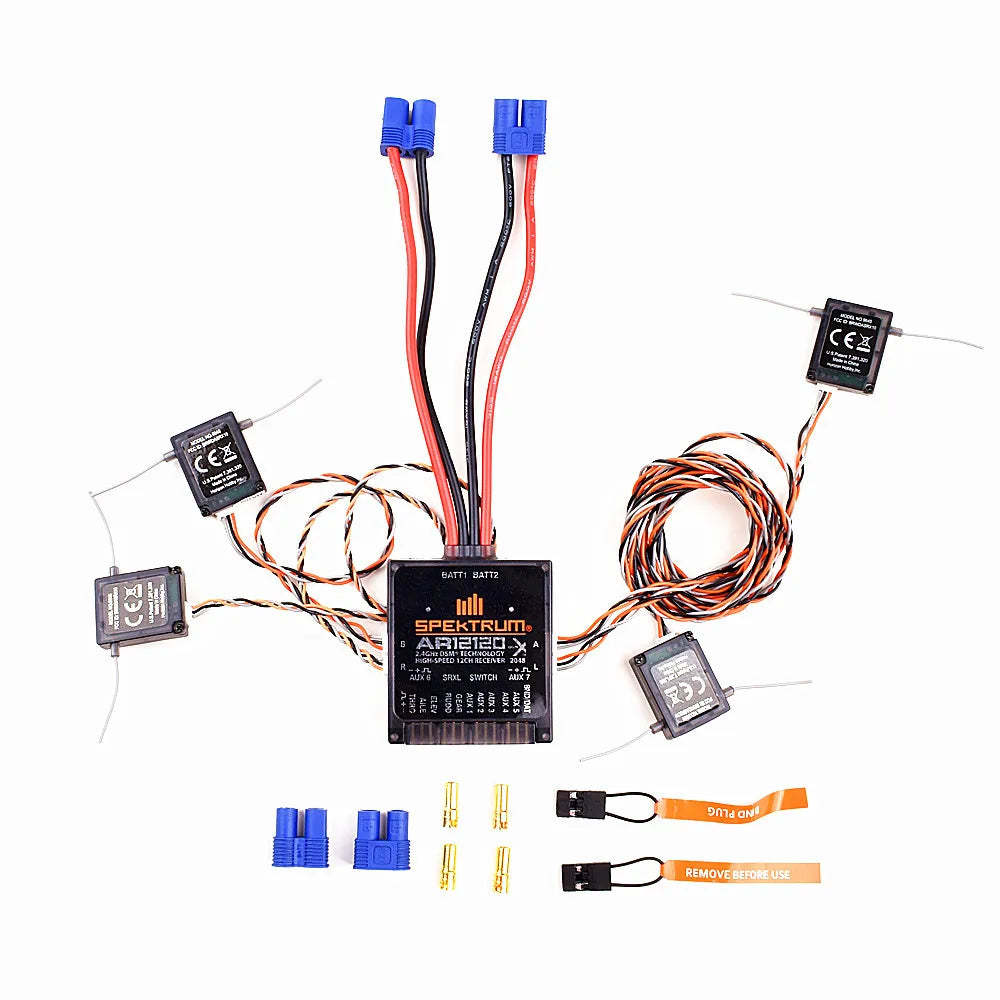

1 set AR12120 receiver with 4 satellites
or Only AR12120 receiver
