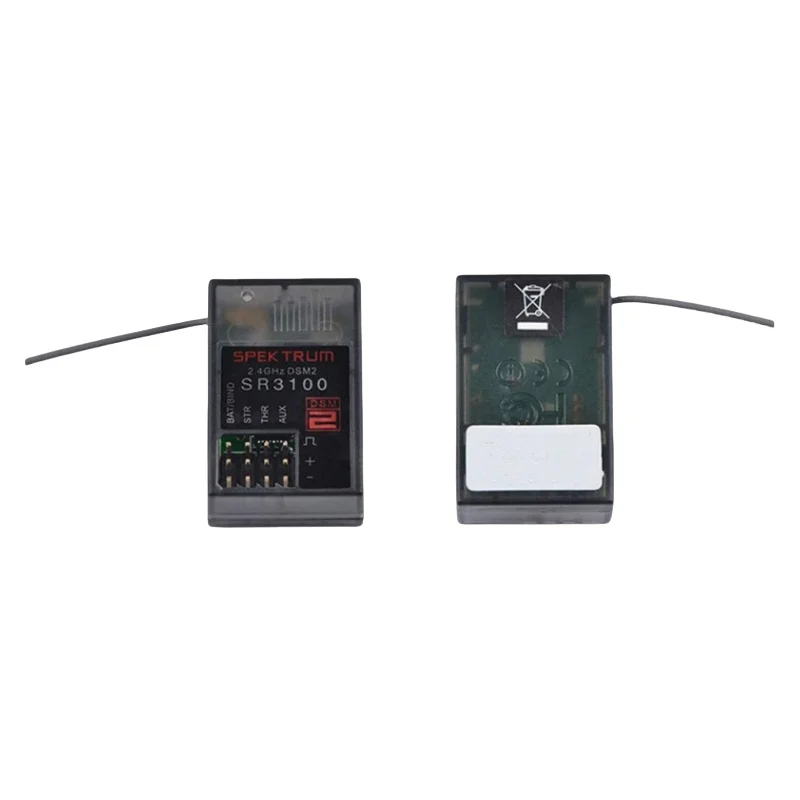

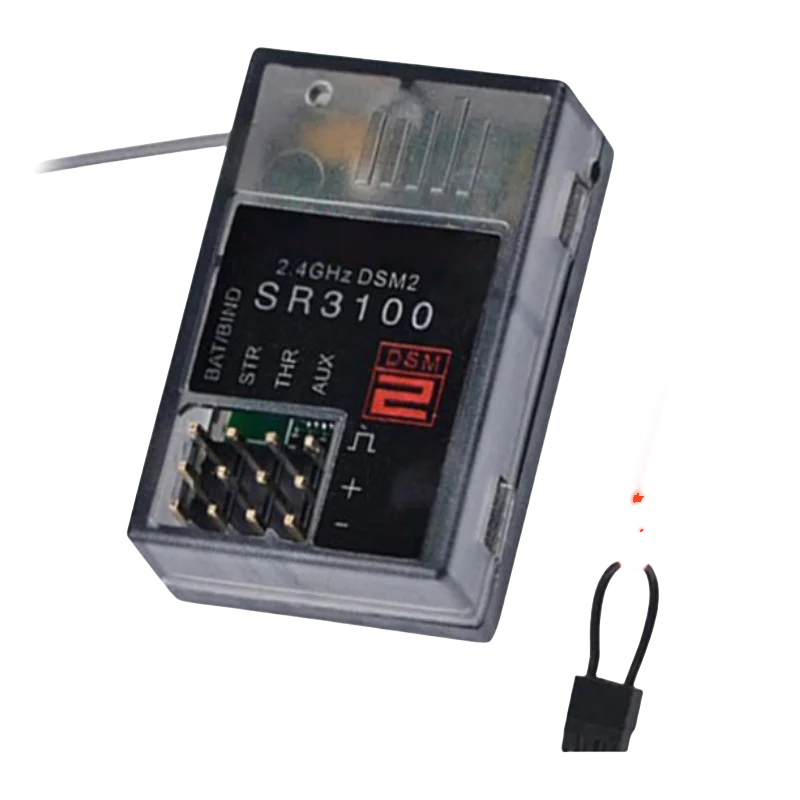

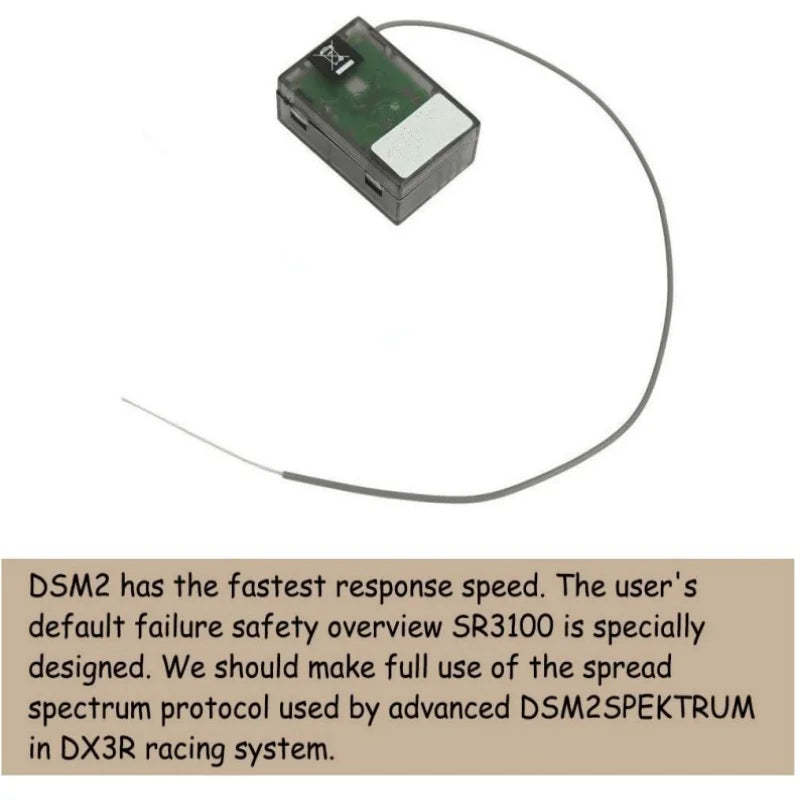

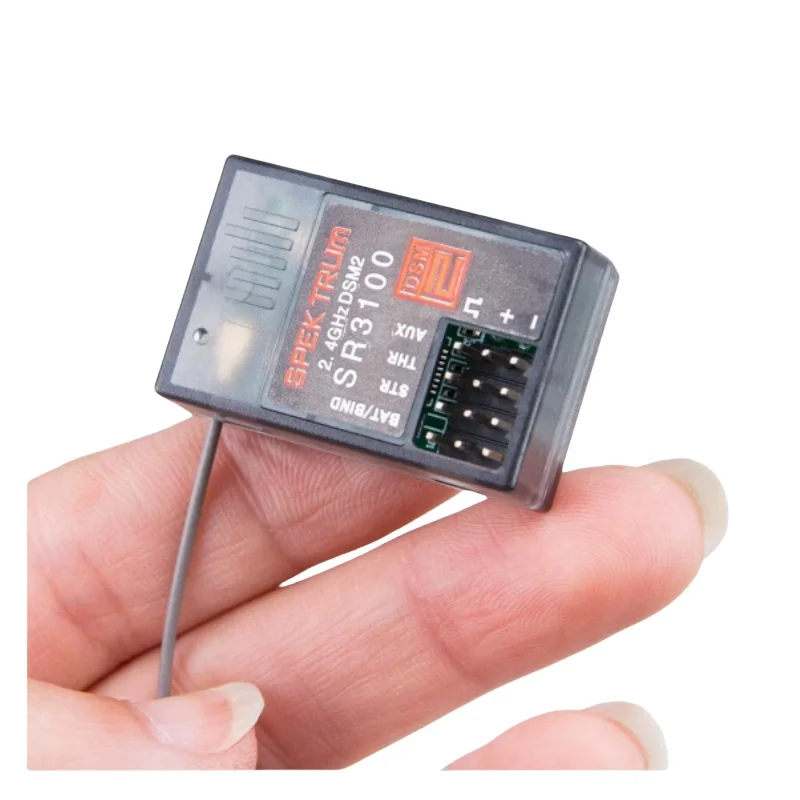

Spectrum Receiver SR3100 DSM2 2.4GHz 3-Channel Surface 3.5–9.6V for Specktrum DX2E DX3R X3E DX4C Transmitters JR RC Car Boat

With the receiver off, insert the Bind plug into the Batt/Bind port in the receiver.
Power the receiver. The amber LED will flash continuously, indicating the receiver is in Bind mode.
Turn on the transmitter and make sure the transmitter shows the desired model number that you intend to use.
Press the rolling selector to access the List screen.
Rotate the roller to highlight the Bind screen and press the roller to access this screen.

Features:
With the receiver off, insert the Bind plug into the Batt/Bind port in the receiver.
Power the receiver. The amber LED will flash continuously, indicating the receiver is in Bind mode.
Turn on the transmitter and make sure the transmitter shows the desired model number that you intend to use.
Press the rolling selector to access the List screen.
Rotate the roller to highlight the Bind screen and press the roller to access this screen.
Rotate the roller to highlight BIND.
With the steering wheel, throttle stick and Aux channel (if applicable) in the desired preset failsafe positions, press the roller to initiate the bind process and to store the failsafe positions.
BIND will flash for a few seconds, then the transmitter will beep indicating the process is complete.
The LED on the receiver should now be solid indicating a successful bind has taken place.
Remove the bind plug and store it in a convenient place.

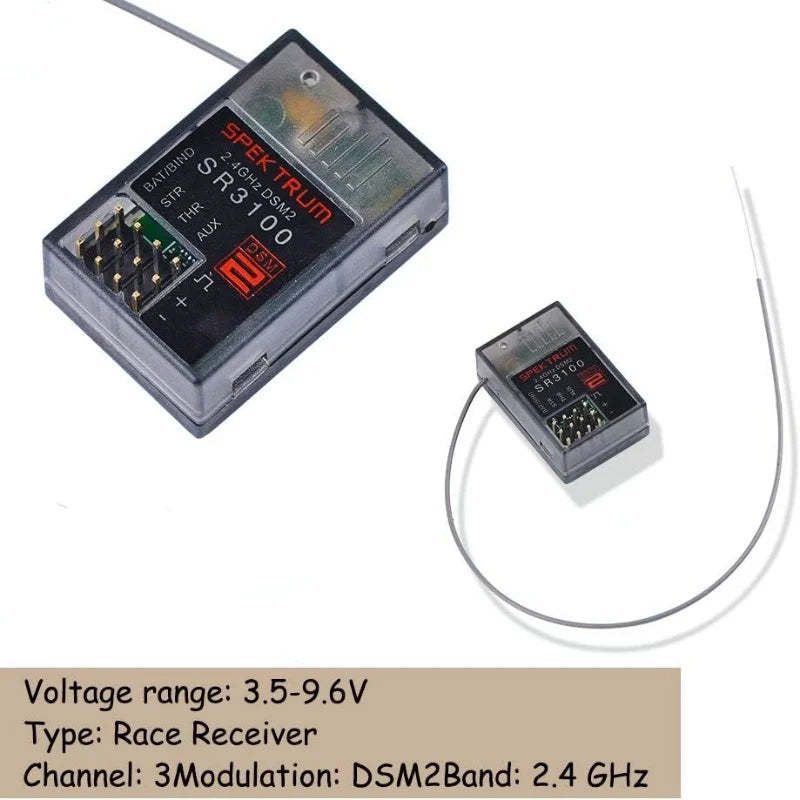

Specifications:
100% Brand new and high qulity
Type: Race receiver
Material: Plastic
Number of Channels: 3
Modulation: DSM2
Band: 2.4GHz

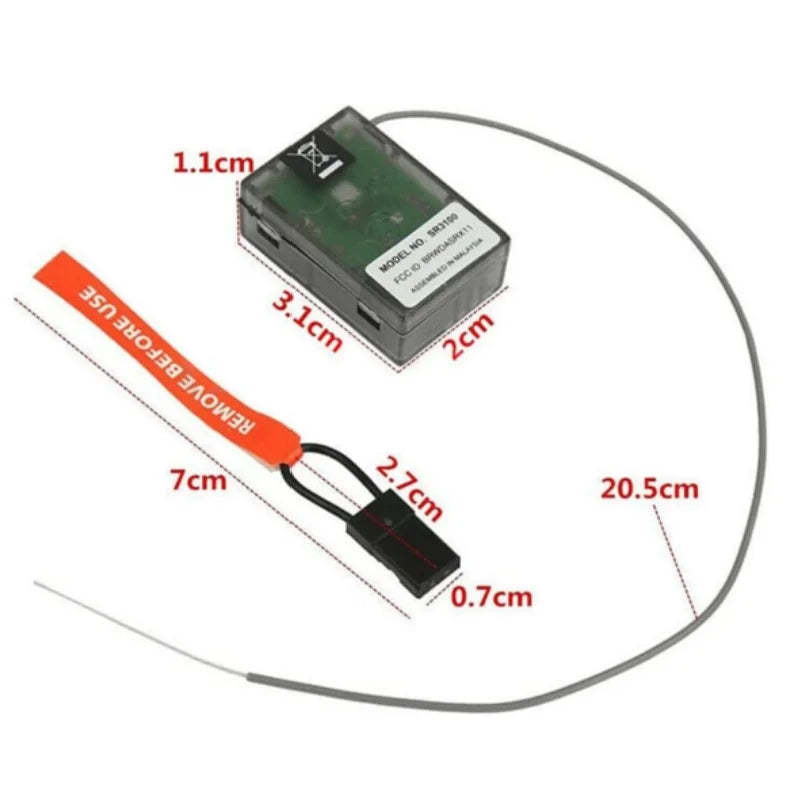

Size: As the picture show
Voltage Range: 3.5–9.6V
Package includes:

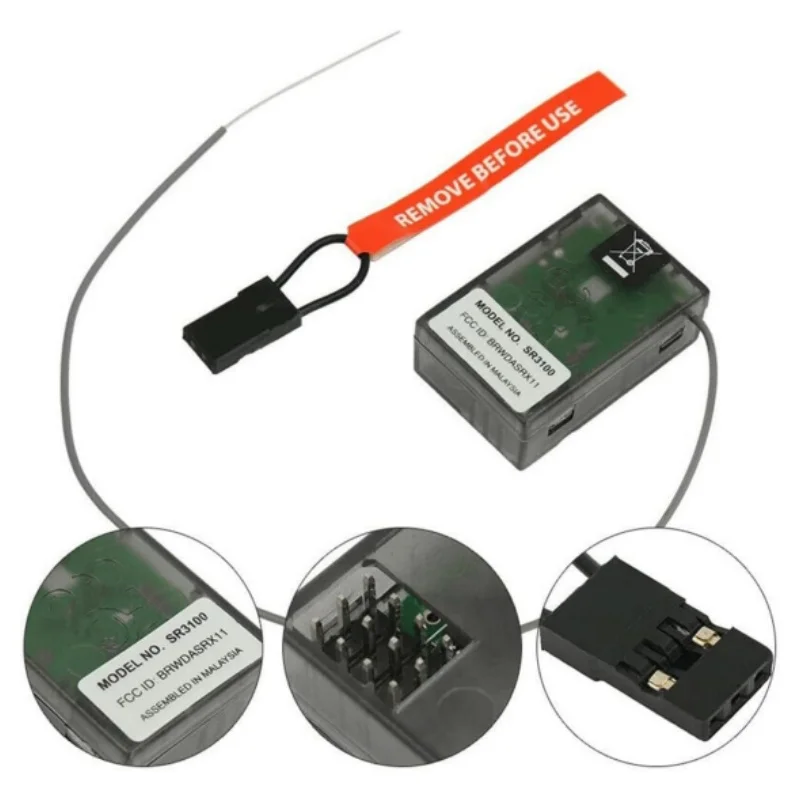

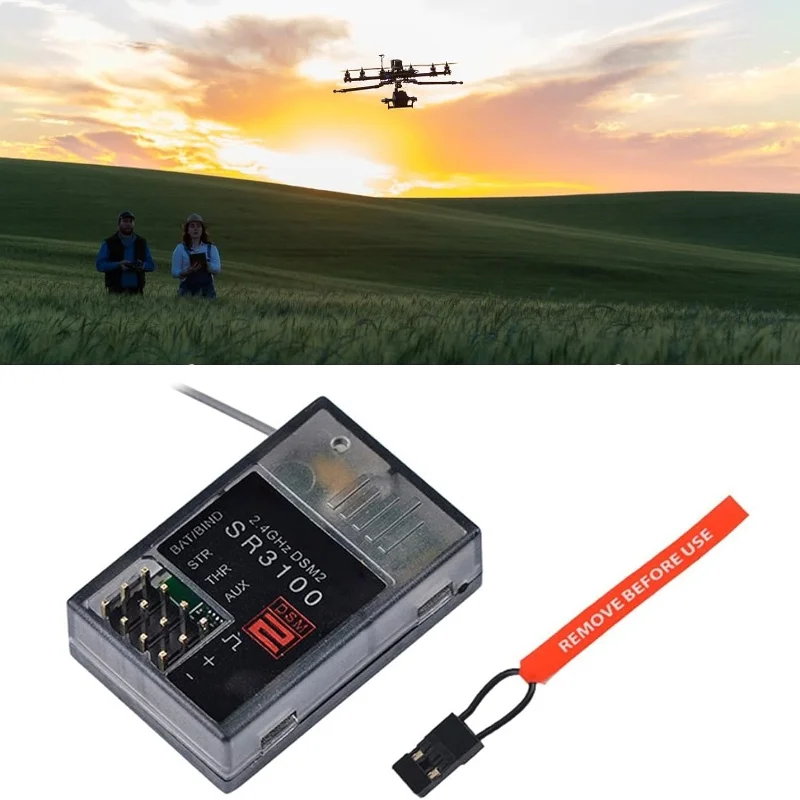

1x DSM2 SR3100 Compatible 3CH Surface Receiver

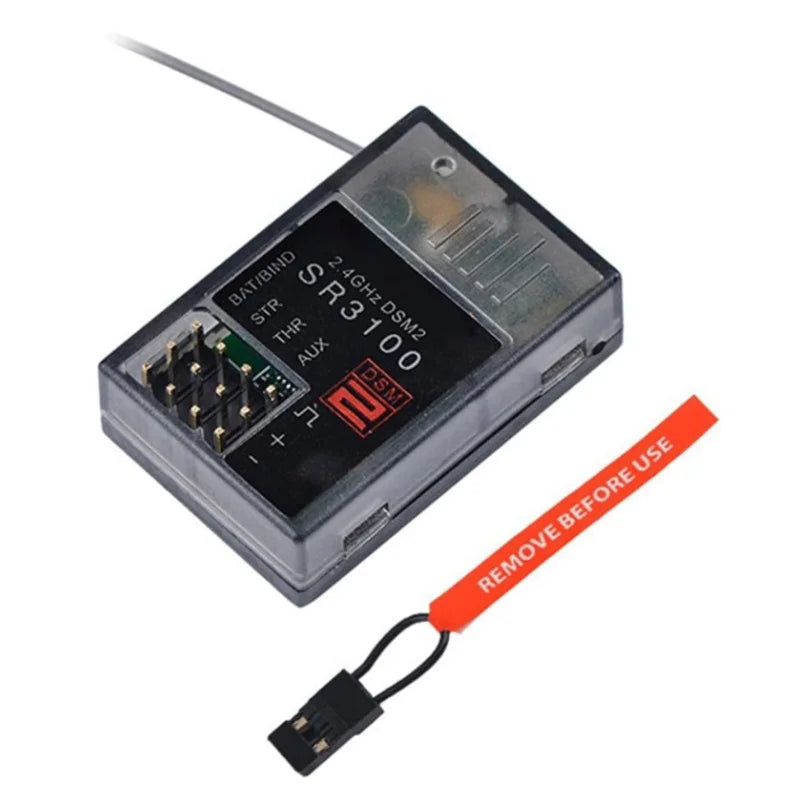

1x Bind Plug
